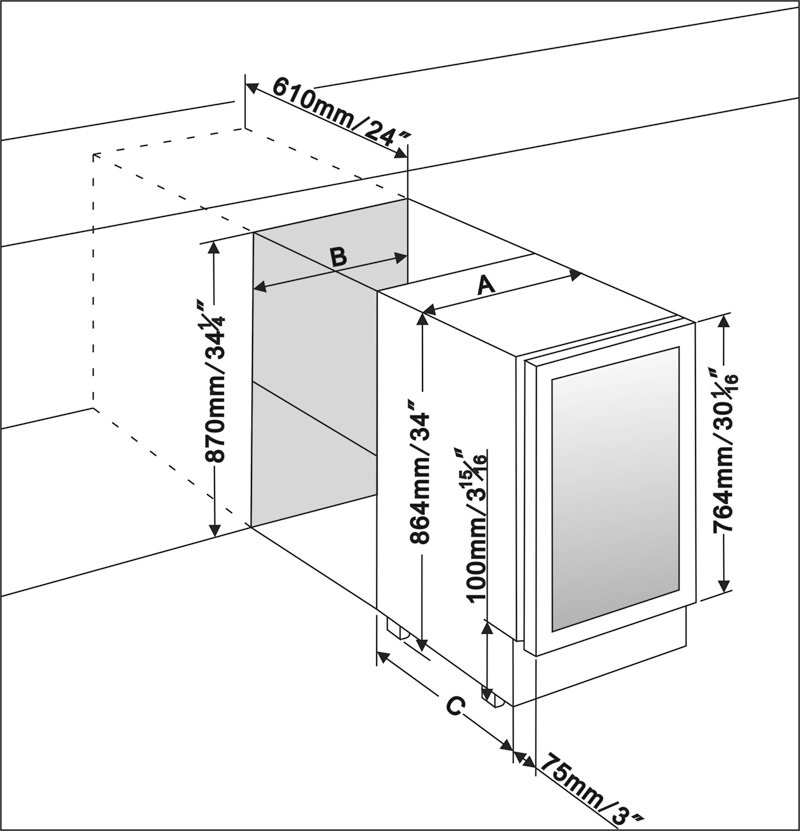

Installation Diagram |
|

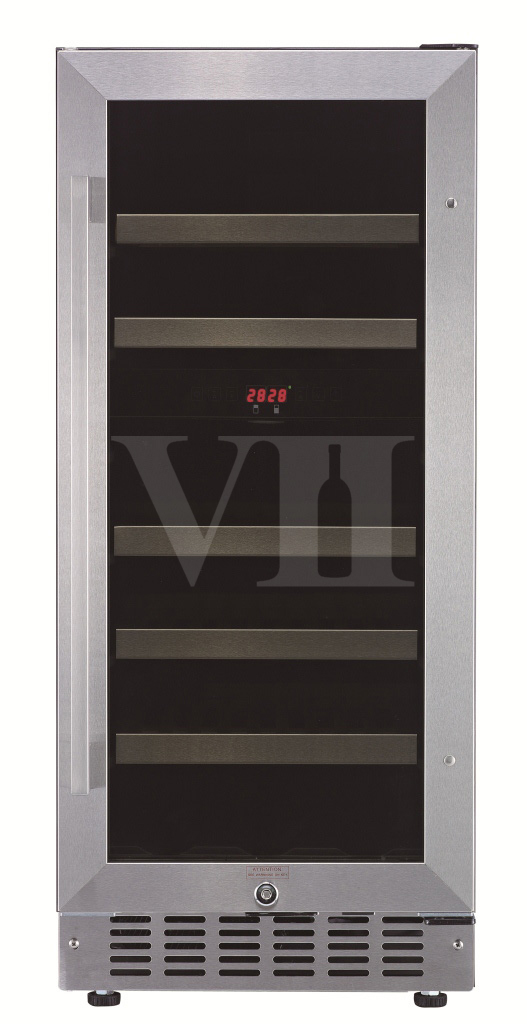

Model: VC33D
| Description: |
Built-in Undercounter or Free Standing Dual Zone Wine Cabinet |
![]() |
![]() |
- 375mm (15") Wide
- Dual temperature zone stores up to 28 bottles (10 upper + 18 lower)
- Temperature can be set from 5掳to 22掳C (40掳to 72掳F) for each zone idea for red, white or sparkling wines
- Temperature can be displayed in either Fahrenheit or Celsius
- Built-in or Free-standing installation
- TouchLight control
- Dynamic Climate mode or Silent mode
- Sabbath mode
- Temperature memory function
- Digital control with blue/red/white LED readout
- Soft white LED Interior Light with ON/OFF switch
- ON/OFF power switch
- No frost with Fan circulated compressor cooling type to ensure interior air circulation with even distribution of temperature
- Reversible tempered double pane light gray glass door can be charged with INERT GAS protects your wine from UV light and creates an attractive display with few condensation and low noise.
- Black coated matte steel outer frame and black plastic interior liner offer lifetime performance and stability. The black liner prevents excessive light from damaging the maturity process
- Stainless steel door frame with stainless steel handle
- Stainless steel plinth
- Slide-out and adjustable beech wooden shelves (Total 5 shelves) with stainless steel front allow for maximum convenience and flexibility to accommodate various size bottles
- Fahrenheit and Celsius degree temperature indicators
- Environmentally friendly refrigerant and foaming insulation gas
- Optional humidity control system (Humidity Pump or Water Tank)
- Optional charcoal air filter
|
|
| Specifications |
| Capacity |
| By Quantity |
(Bottles) |
28 |
| By Volume |
(Liters) |
90 |
| Dimensions |
| Product |
Width脳Height脳Depth
(mm/Inch) |
375 脳 865 脳 615 (w/handle)
14¾鈥� 脳 34鈥� 脳 24¼鈥� |
| Packing |
Width脳Height脳Depth
(mm/Inch) |
415 脳 910 脳 628
16⅜鈥� 脳 35⅞鈥� 脳 24¾鈥� |
| Weights |
| Net |
(Kgs/Lbs) |
34 / 75 |
| Shipping |
(Kgs/Lbs) |
36 / 79 |
| Loading Capacity |
| 20鈥� |
(Units) |
123 |
| 40Std. |
(Units) |
249 |
| 40鈥睭C |
(Units) |
294 |
|
|
|
